Utility Recirculation Washers

For loose parts, like fittings, machinery parts, pipe sections, or for in place, pipelines, closed machinery, holding tanks. Now you can clean loose fittings and machine parts, and clean-in-place equipment with one complete washer, the Schlueter Safgard Utility Recirculation Washer.

By simply turning the handle on the three-way valve, the pump flow can be directed through tubing to the machine or pipeline to be a clean-in-place solution. CIP work can also be accomplished through use of (two) 2 manual polished butterfly valves and a tee installed, or with two (2) air-actuated butterfly valves and tee. By properly setting the return line from in-place equipment into the tank, loose parts can be cleaned at the exact same time as the clean-in-place equipment is being cleaned! Extensive experiments have resulted in tank sizes for convenient general use in recirculation cleaning, and in the Safgard Conical Disperser, features which will give you added time savings.

Category: ,

More Information

Standard Features Included with Utility Recirculation URW COP Washers:

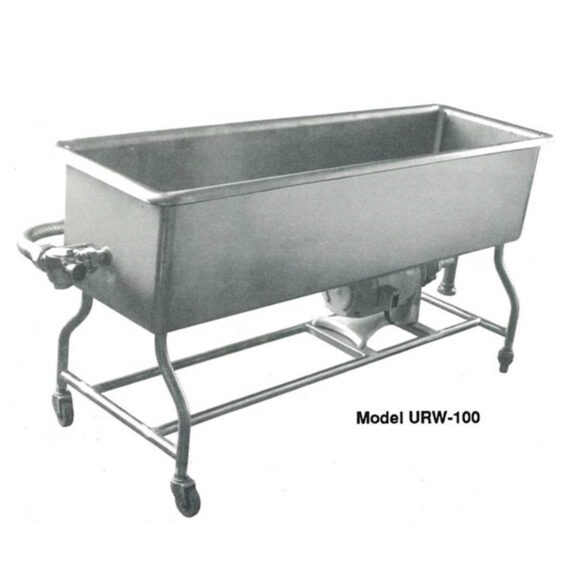

Model URW-75 and URW-100: 75 or 100 gallon capacity

Tank Interior Dimensions: 20” wide x 18” deep x 52-1/2” or 74-12” long, for 75 or 100 gallon versions respectively. Overall tank height is 35”.

  • Casters: Standard with adjustable ball feet; option for 5” Heavy-duty composition wheels, Part # 30393 set of (4).
  • Conical Dispenser, Piping and Motor Base
  • Pump: 5, 7.5 or 10 H.P. 3/60/220/440 Industrial pumps, Sanitary Type Motors
  • Steam Regulator: 1/2” Powers Self-Actuating Stainless Trim for In-Tank Handling, larger size available.

Options:

Tank covers: Optional

Brackets: For recording thermometer, tank top edge-pair (Taylor Type), Tank end Wall Mount (Minicorder Type)

For COP/CIP Pipe Lines and Machinery:

  • One (1) 1/2” Three way valve, mounted in pump discharge line, OR two (2) manual butterfly valves and a tee installed, OR two (2) air-actuated butterfly valves with tee installed.

All Jobs Including Holding Tanks:

  • 2” Three way valve installed in pump suction line in place of tank outlet tee or two other valves above
  • 2” Two Port Suction Manifold for Recording Thermometer and Steam Regulator Thermo-bulbs
  • One (1) 1/2” Steam Heat Tee installed in Pump Discharge Line for Steam Injection w/ Venturi Feed

Options for Heating Solution:

Immersion Electric Heating Elements: mounted in Tank with sealed Stainless Terminal box and in-tank shield 6,000 watts-220 volts (440 Volts available)

  • Electric Heater w/ case for 100 Gal. Tank w/ three 316 SS elements, 11” Long, Part #: 30505
    3.5Kw, 60-250F Pilot, 480V, 3 PH
  • Electric Heater w/ case for 150 Gal. Tank w/ three 316 SS elements, 14” Long, Part #: 30506
    5.2 Kw, 60-250F Pilot, 480V, 3 PH
  • Electric Heater w/ case for 200 Gal. Tank w/ three 316 SS elements, 18” Long, Part #: 30507
    6.9 Kw, 60-250F Pilot, 480V, 3 PH
  • Electric Heater w/ case for 250 Gal. Tank w/ three 316 SS elements, 21” Long, Part # 30508
    8.5 Kw, 60-250F Pilot, 480V, 3 PH
  • Electric Heater w/ case for 300 Gal. Tank w/ three 316 SS elements, 24” Long, Part #: 30509
    10.25 Kw, 60-250F Pilot, 480V, 3 PH

Direct injection of steam through a self-actuating steam regulator: Regulator includes stainless piping, stainless thermowell, stainless steam injector, the ports in the tank, and an additional port in the tank for insertion of a recording thermometer thermobulb to be used in CIP work.

  • Steam Regulators used are ½” Powers Steam Regulators – Self Actuating with stainless steel trim. ¾” , 1″, 1 ¼” and 1 ½” Powers Steam Regulators available per request.

Larger Capacity Utility Recirculation COP Washer

Larger-Capacity-Utility-Recirculation-COP-Washer

Model RWC-10 with Wash Tank UW-175: This is the Safgard 175 Gallon “Big Washer” for all of your pipe, fittings, and machinery parts. Select the size tank you need and equip it with both the Jet Manifold for cross-tank washing – that gets into every crevice, and with the Push-Pull washing action that really optimally cleans pipe – both systems are valved so they can operate independently permitting full tank loads or parts to be washed with the fastest and most thorough washing actions.

The washer has the Model UW-175 tank of 14 gauge, can go lower, stainless steel and can be 304 or 316. All piping is sanitary tube with sanitary fittings, this big washer does all your COP washing with maximum efficiency!

RWC-10 with Wash Tank Model UW-175 Standard Features:

  • RWC-10 with UW-175 tank Dimensions 26” w x 41” High x 11 ft 6” long, any size tank available.
  • 10 Ft. Ball feet, casters set of 6, or heavy duty adjustable feet
  • Third set of legs
  • Jet Manifold: Push-Pull Piping, Three Way Valves, and Pump Bases
  • Pumps: Two 7 1/2 HP 3/60/220/440

Options:

  • ½” – 1 ½” Powers Steam Regulators available installed for in-tank heating with SS trim.
  • 2″ – 11CR Valve: Installed in one Pump Discharge Line
