CIP Accessories
Schlueter Safgard CIP Accessories
General Summary of CIP Accessories cataloged here:
CIP Washing Equipment Aids:
Sanitary Air Vent
CIP Return Air Vent
Rotary Filler Valve Wash Ring
Water Hose Valve
Hose Racks
Funnels
Adjustable Feet
Sanitary Piping Equipment:
Solution Supply Tubes
Double Ball Tee
Weld Collars
Pipe Hanger Clamps
Tank Inlet Adapters
Pipe Hangers and Supports
Pump Feet
Flow Selector Stations (Flow-Verters)
Category: Application Equipment, Clean In Place, Components, System Accessories
More Information

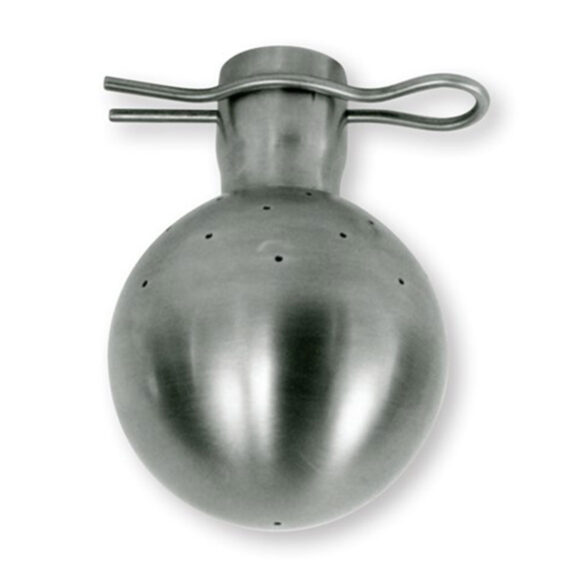

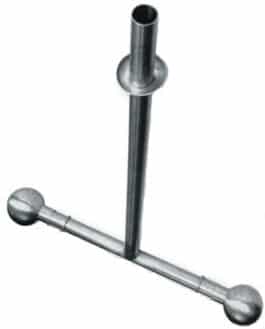

Spray Balls and Devices can be found here.
Sanitary Air Vents:
Install in pump station or in a high line. Sanitary Air Vent expels air from line without the loss of liquid. All Stainless Steel, sanitary clamp plastic ball seal. Tee not included.

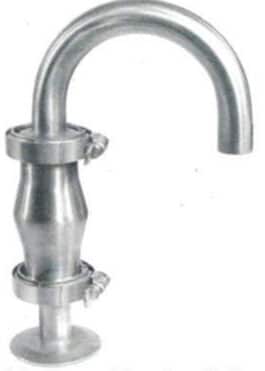

Pictured Above: Sanitary Air Vent installed in 2″ clamp type cap, Part # 32742
| Safgard Sanitary Air Vents | ||
|---|---|---|
| Type | Size | Part # |
| Tri-Clamp Sanitary Air Vent | 1.5" | 32683 |
| Tri-Clamp Sanitary Air Vent | 2.0" | 32742 |
| Tri-Clamp Sanitary Air Vent | 2.5" | 32684 |
| Tri-Clamp Sanitary Air Vent | 3.0" | 32685 |
| Tri-Clamp Sanitary Air Vent | 4.0" | 32686 |
| Gooseneck for Air Vent | 32740 | |
| 2" Quick Clamp for Air Vent | 2.0" | 44871 |
| Gasket Seat for Check Ball | 45216 | |
| Body for Sanitary Air Vent | 32738 | |
| Plastic Check Ball for Air Vent | 32747 | |
| Spool Piece with Tri-Clamp | 32739 | |
| Return Pump Air Vent | 32743 | |
| Check Valve | 32680 | |
| Cap (Umbrella) | 32681 | |
| Polished Nipple | 1/4" x 3" | 32682 |
CIP Return Pump Air Vents:
Install in pump suction to expel air. Avoids cavitation and air lock which causes wash program disruption. Ball valve shut off (not shown) is extra, not included.

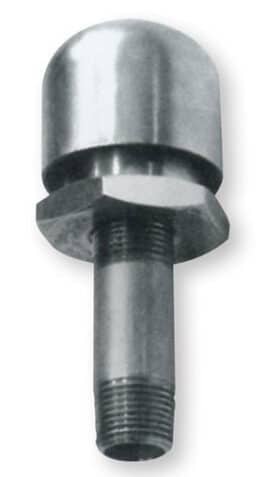

Pictured Above: CIP Return Pump Air Vent ¼” I.P. thread Part # 32743
Water Hose Valves:
- Shuts off with Simple Twist
- Keep hose ends off floor
- Insulated Plastic Handle
- Full flow spread/shower with Rotary Adjusting
Model/Description
Jet Spray Hose Nozzle with 1” connection (Part Number: 40144)
Hose Racks/Stainless Steel Wall Plate Racks:
Sturdy, Practical and High-Strength Stainless Build perfectly used for tubing, hoses, and more.
Model 201A and 201B constructed of ½” Solid Round Bar formed and welded to 14 ga. Back plate (plate dimensions 11 ½” x 6″). Holds up to 5″ O.D. hose.
| Safgard Stainless Steel Hose Racks | |
|---|---|
| Model / Description | Part Number |
| Model 201A | 21604 |
| SR Series Hose Rack | 21602 |
Pictured Above: Safgard SR Series Hose Rack
Pictured Above: Safgard SS Wall Plate Hose Rack Model 201A, Part #21604
Built-In Tanker Washer Agitators:
Slotted Tube – Fan Spray washer for deluge cover of tanker walls. Sanitary with no moving parts. Air agitation through the washer tubes using only 2-4 PSI of filtered air for uniform air distribution. No Foaming.
Rated Flow of 120 GPM @ 30-40 PSI.
Ideal for: Milk, Fruit Juice, Syrup, Sugar, Oils, Chemicals.
| Built-In Tanker Washer Agitators | |||
|---|---|---|---|
| Model | Description | Rated Flow | Part Number |
| Model ORT-5 - 30' | For Tanker length to 32' | 120 GPM @ 30-40 PSI | 31452 |
| Model ORT-6 - 35' | For Tanker length to 37' | 120 GPM @ 30-40 PSI | 31453 |
| Model ORT-7 - 40' | For Tanker Length to 42' | 120 GPM @ 30-40 PSI | 31454 |
Receiving Room CIP Accessories:

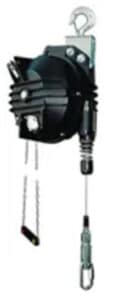

Pictured Above: Balancer for Tanker Washers
Pictured Above: Roller/Carrier for Tanker Spray Washers
Beams, Roller/Carriers for TS4 Tank Washers, Washer/Balancer (Retractors) for TS4 Carriers:
| Receiving Room CIP Accessories | |
|---|---|
| Description | Part Number |
| "I" Beam 4" Std. Cut and Formed | 31431 |
| Carrier for Track for TS4 Sprayers | 31432 |
| Washer/Balancer (Retractor) for TS4 Carrier, 44-55 Lbs. | 31433 |
Flow-Verters:

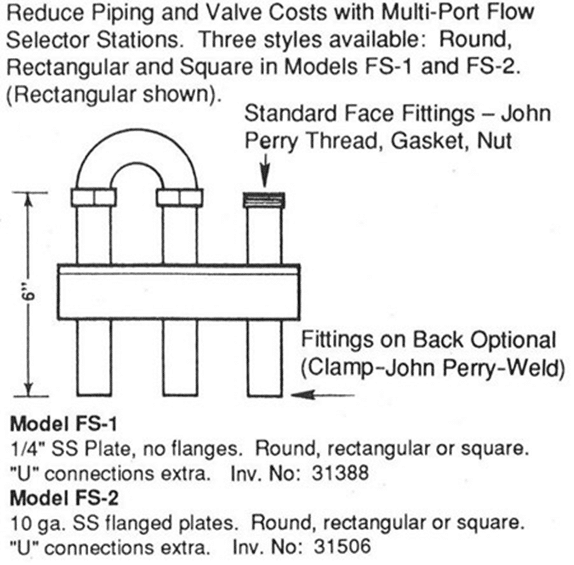

Reduce piping and valve costs with multi-port flow selector stations.
Pictured Above: Safgard Flow-Verter
| Flow-Verter Port Sizes | ||||
|---|---|---|---|---|
| Model Options | Port Sizes Available | |||
| FS-1 or FS-2 | 1.5" | |||
| FS-1 or FS-2 | 2.0" | |||
| FS-1 or FS-2 | 2.5" | |||
| FS-1 or FS-2 | 3.0" | |||
| 10 ga. Back plate with Tri-Clamp Ferrules, per port 1/4" Stainless | ||||
| 180 Deg. JP U-Bend Connections, with clamps and backside TC Fittings | ||||
| Proximity Switch Hole in Plate | ||||
| Proximity Switch Actuator Rod on U-Bend | ||||
| Plastic Name Plate (ID) | ||||
Size and Make Safgard Sanitary Flow-Verters:
Remember to Specify Part Number should you have it, the shape of the plate (shapes: round, rectangular or square), the sizes and number of ports needed, and backside weld or fitting.
Pump Feet:
Ideal for Keeping Motors Off the Ground.
| Pump Feet (Keep Motor off Floor) | |||
|---|---|---|---|
| Model | Part Number | ||
| PF-1 (To 7.5 HP) Plated Steel | 31588 | ||
| PF-1SS (up to 7.5 HP) Stainless Steel | 31589 | ||
| PF-2 (7.5-15 HP) Plated Steel | 31590 | ||
| PF-2SS (7.5-15 HP) Stainless Steel | 31591 | ||
| Adjustable Feet 1.5" | 30397 | ||
| Adjustable Feet 2.0" | 30398 | ||
Sample Cock:
Sample Cock, 3/8″ NPT x BARB
| Sample Cocks | |||
|---|---|---|---|
| Model / Description | Part Number | ||
| Sample Cock, 3/8" NPT x BARB | 32347 | ||
Safgard Sanitary Piping Equipment
Solution Supply Tubes:
Pictured Above: Solution Supply Tubes
| Safgard Solution Supply Tubes | |||
|---|---|---|---|
| Connection Size | Length | Model | Part # |
| 1.5" | 6" | ST-1-1.5-6 | 31413-1 |
| 2.0" | 6" | ST-1-2-6 | 31412-1 |
| 1.5" | 48" | ST-1-1.5-48 | 31413 |
| 2.0" | 48" | ST-1-2-48 | 31412 |
Double Ball Tees:
Pictured Above: Safgard Double Ball Tee
| Double Ball Tees | |||
|---|---|---|---|
| Model / Description | Part Number | ||
| ST-4 - 1.5" x 2' x 4" | 31435 | ||
| ST-4 - 2" x 2" x 4" | 31434 | ||
Weld Collars:
Pictured Above: Diagram for Safgard Weld Collars
Useful in Installation of Safgard Solution Supply Tubes
| Weld Collars | |||
|---|---|---|---|
| Model / Description | Part Number | ||
| WCP-1.5" | 31601 | ||
| WCP-2.0" | 31600 | ||
| WCP-2.5" | 31599 | ||
| WCP-3.0" | 31598 | ||
| WCP-4.0" | 31596 | ||
| WCF-1.5" | 31603 | ||
| WCF-2.0" | 31604 | ||
Pipe Hanger Clamps:
Heavy 3/16″ x 1″ SS Bar Assembly with lock nuts and bolts.
Please Note: Pipe Hanger Clamps can be purchased in two sizes at a time only.
1 ½” & 2″, 2 ½” & 3″ with extra rubber bumpers to permit use either way.
Pictured Above: Pipe Hanger Clamps
| Pipe Hanger Clamps | |||
|---|---|---|---|
| Model / Description | Part Number | ||
| PHC-1.5" | 31570 | ||
| PHC-2.0" | 31571 | ||
| PHC-2.5" | 31572 | ||
| PHC-3.0" | 31573 | ||
| PHC-4.0" | 31574 | ||
| Grommets Only | 31578, 31579 | ||
CIP Tank Inlet Adapters:
| CIP Tank Inlet Adapters | |||
|---|---|---|---|
| Model / Description | Part Number | ||
| TA-1.5" x 2.0" | 31421 | ||
| TA-1.5" x 2.5" | 31420 | ||
| TA-1.5" x 3.0" | 31423 | ||
| *Retainer Ring/Nylon Split Cap | |||
Spray Discs:
Pictured Above: Safgard Spray Discs
The Safgard Spray Device Spray Discs are special made for perfect washing of cooking vessels. The discs will project an optimal flat sheet of solution to the vessels’ sidewalls and forcefully flush out the cooked crust.
Note: The SK-1 Style 80 and 150 GPM Discs are ideal for loose covered cooking vessels. The SK-2 Style 80 and 150 GPM Spray Disc Models are ideal for cooking vessels with agitators.
| Safgard Spray Device Spray Discs with Pins (For Loose Covered Cooking Vessels) | |||
|---|---|---|---|
| Spray Disc / Pin Model | Adjustable up to GPM of | Supply Pipe Size | Part Number |
| Model SK-1-80 | 80 | 1 1/2" | 31440 |
| Model SK-1-150 | 150 | 2.0" | 31364 |
| For loose covered cooking vessels: Top drilling for loose cover washing (can be omitted for coverless vessels. | |||
| For Vessel up to Six Foot Wide, One (1) Spray Disc required, for Vessel of Twelve Feet, Three (3) Spray Discs used. | |||
| Safgard Spray Device Spray Discs with Pins (For Cooking Vessels with Agitators) | |||
| Spray Disc / Pin Model | Adjustable up to GPM of | Supply Pipe Size | Part Number |
| Model SK-2-80 | 80 | 1 1/2" | 31441 |
| Model SK-2-150 | 150 | 2.0" | 31365 |
| For cooking vessels: Bottom Drilling for Agitator Washing, Top Drilling for Loose Cover Washing (omit for coverless vessels) | |||
Stainless Steel Pins:
| Stainless Steel Pins | |||
|---|---|---|---|
| Model / Description | Part Number | ||
| 1.5" SS Pin | 31435 | ||
| 2.0" SS Pin | 31474 | ||
Adjustable Feet:
| Safgard Adjustable Feet | |||
|---|---|---|---|
| Model / Description | Part Number | ||
| 1.5" Feet Adjustable, Replacement | 30397 | ||
| 2.0" Feet, Adjustable, Replacement | 30398 | ||
Safgard 4″ Shell-And-Tube Heat Exchangers:
Pictured Above: Safgard 4″ Heat Exchanger
Perfect solution for boosting wash water temperature in a CIP system.
- Also great for milk or juice heating or cooling.
All stainless steel, polished OD on the shell and ID in the tubes to meet 3-A Standards.
Side inlets are two 3″ male NPT
| Safgard Cool Milk SS 4" Shell-And-Tube Heat Exchanger | |||||||
|---|---|---|---|---|---|---|---|
| Model | Description | Tubes Quantity and Diam. | Material | Meets 3-A | Lengths | Tubes Sq. Ft heat exch. | Part Number |
| Safgard 4" Shell and Tube Heat Exchanger | 4" Clamp Shell with ends 1.5" clamp, Two 3" male NPT side inlets, 15 tubes. | 15 with 5/8" ID Diam. | All Type 304 SS, Polished OD shell and ID Tubes | Yes | Shell 45" Long, Total 52" L | 10 sq. ft area | 48570 |
| *Exchange heat or cold for liquid to liquid or air to liquid or air to air. **Product being heated or cooled needs to flow in reverse directions. Use multiple units to make double pass heat exchangers. | |||||||
Uses for Safgard 4″ Heat Exchangers:
- Milk pre-cooling before the milk tank
- Milk heating, to make calf milk pasteurizer
- Cooling milk or juices to a filter machine
- Vacuum pump exhaust heat reclaiming to make hot wash water
- Boosting wash water temp. in a CIP system
- Replaces heat exchanges with defective gaskets
Safgard Tank Safety Steps
| Safgard Heavy-Duty Safety Steps ( Bulk Tank ex. Ideal Application) | |||||
|---|---|---|---|---|---|
| Model / No. of Steps | Width (Inches) | Depth (Inches) | Height (Inches) | Weight (Lbs.) | Part Number |
| (3) Three Step | 18" | 10" | 24" | 38 lbs. | 21866 |
| (2) Two Step | 18" | 10" | 16" | 27 lbs. | 21852 |
| (1) One Step | 18" | 10" | 8" | 13 lbs. | 21850 |
| (1) One Step | 8" | 10" | 8" | 29 lbs. | 21864 |
| (1) One Step | 6" | 10" | 8" | 24 lbs. | 21860 |
| (1) One Step | 3" | 10" | 8" | 18 lbs. | 21858 |
Pictured Above: Safgard Tank Safety Steps
Safgard Funnels:
Safgard Manufactured High Quality, High-Strength, Long-Lasting Funnels:
Stainless Steel Funnels Made of Reinforced 14 ga. All Stainless Steel
| Safgard Reinforced 14 ga. SS Funnels | ||
|---|---|---|
| Diameter | Height | Capacity/Gallon |
| 20" | 24" | 10 gal. |
| 20" | 30" | 13.5 gal. |
| 24" | 24" | 15 gal. |
| 24" | 30" | 19.5 gal. |
| 30" | 24" | 24.5 gal. |
| 30" | 30" | 30 gal. |
Pictured Above: Safgard Funnels
